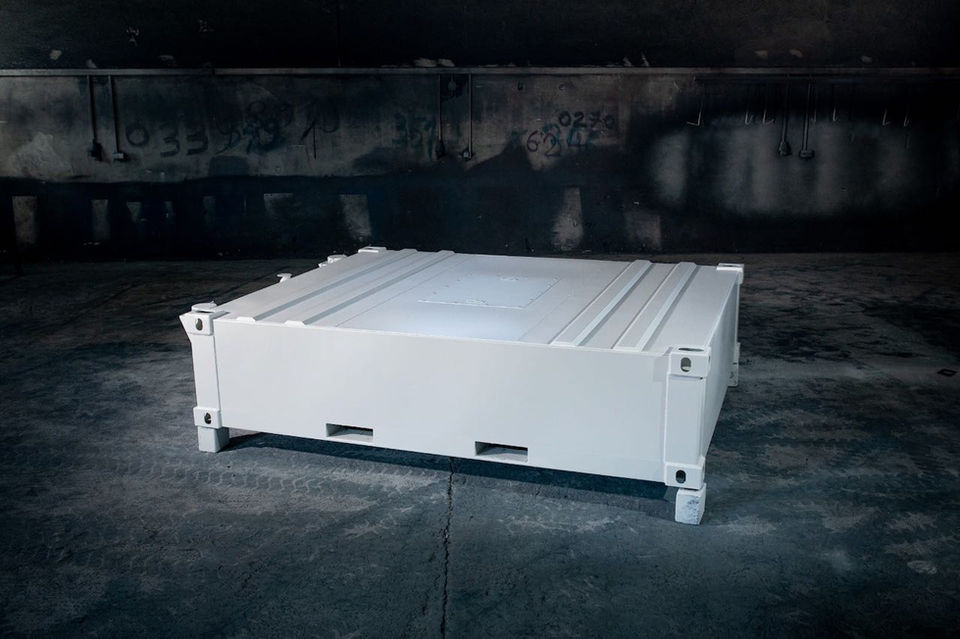

Large size:

•  Tank color: RAL 7035, RAL 5010, RAL 7016
•  External length 6055 mm, width 2435 mm and height 700 mm
•  Weight approx. 1,100 kg
•  Volume // capacity approx. ca. 8.5 m3
•  12 x steel corners, welded corner castings, dimensions according to ISO standard, thickness 6mm
•  Bottom, side wall steel plate 3 mm thick, welded
• Roof steel plate 1,5 mm thick, welded, self-supporting cross beaded steel sheet.

Small size:

•  Tank color: RAL 7035, RAL 9010, RAL 5010
•  External length 2990 mm, width 2435 mm and height 700 mm
•  Weight approximately 760 kg
•  Volume // capacity approximately 4.5 m3
•  8 x steel corners, welded corner fittings, dimensions according to ISO standard, thickness 6 mm
•  Bottom, side walls – steel plate, 3 mm thick, welded
• Roof steel plate 1,5 mm thick, welded, self-supporting cross beaded steel sheet.

Operation in a vacuum:

•  With a loader.
•  With a crane.
•  2 x Funnel with a diameter of 134 mm for connection to the container
•  1 x Glass level indicator mounted on the wall
•  1 x Service opening
•  1 x 4 ́ ́ inch pipe closed with a screw. Possible to attach a mace. Front face in the middle below.
•  1 x chimney sweep. Front face in the middle up.
